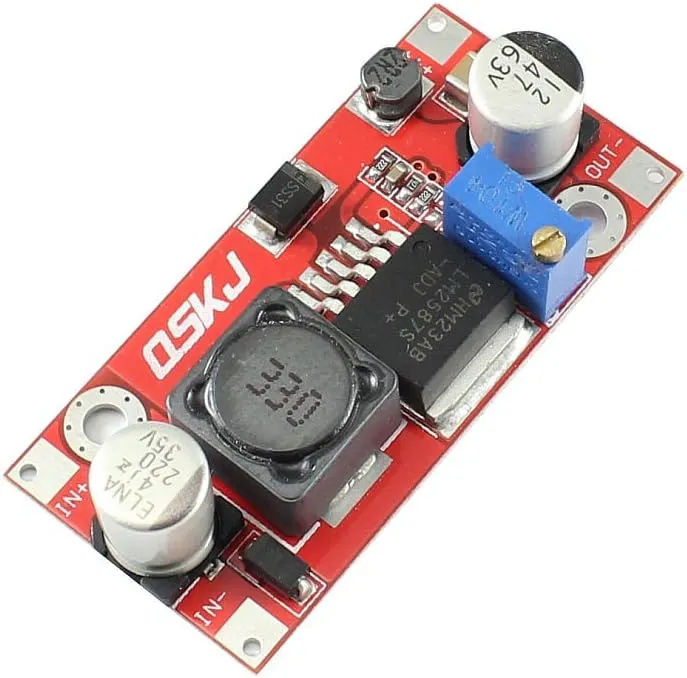

Output voltage: (1) continuously adjustable (5-50V)
Fixed output 5V
Output current: 2.5A (max)
Input current: 4A (max)
Output power: natural cooling 15W, with heat sink 25W (max) actual power
Operating temperature:-40℃ to 85℃(ambient temperature exceeds 40 degrees,please reduce power usage,or enhance heat dissipation)
Full load temperature rise:45℃
Working frequency:400kHz
No-load current:5V to 12V 15mA,8.4V to 12V 7mA,12V to 24V 9mA,12V to 36V 18mA,24V to 48V 9mA,24V to 36V 6mA
Load regulation:±0.5%
Voltage regulation:±0.5%
Dynamic response speed:5% 200uS
Enable control port:Yes,default high level 1.4V-VIN(ON)
Short circuit protection: None (please install a fuse or protection circuit at the input)
Input reverse polarity protection: None
Installation: can be screwed (fixing hole 3 mm), 2 fixing holes
Wiring method: soldering, after adding leads, it can be directly soldered on the PCB
